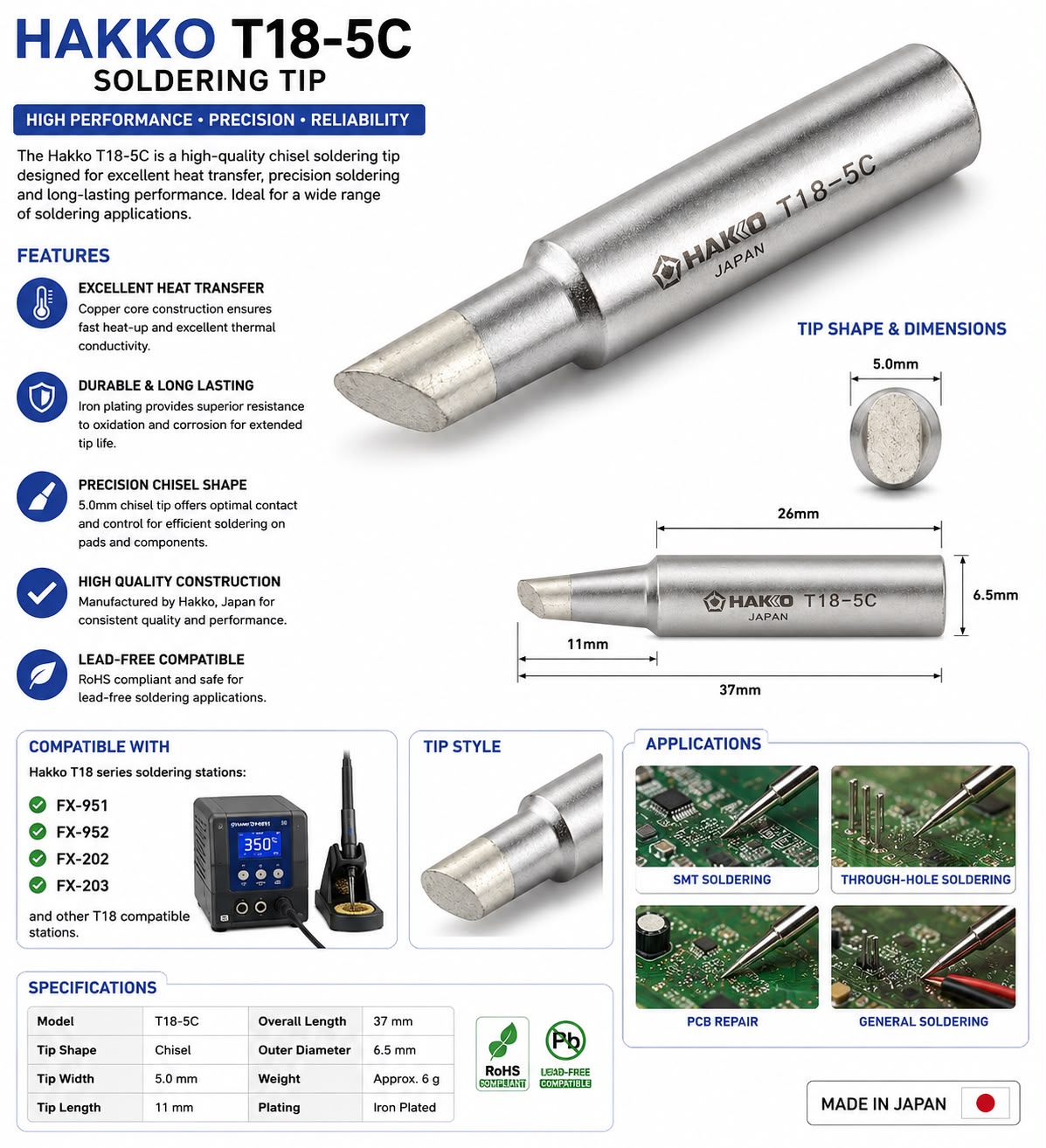

Hakko T18-C5 Bevel Shape Tip, Soldering Iron Bit
Product Features
-
Drag Soldering & Micro-SMD: The 5MM flat face acts as a tiny reservoir for liquid solder, making it optimal for drag soldering fine-pitch IC leads (QFP, SOIC) without creating bridges.
-
Pre-tinning Wires & Pads: Excellent for quickly transferring heat to tiny surface mount pads or pre-tinning delicate wire ends.
-
Controlled Heat Transfer: Offers direct thermal contact via its flat angled surface, outperforming standard conical tips for micro-soldering tasks.
Tool Compatibility
The T18-C5 bit works with a wide range of current and legacy Hakko handpieces and soldering stations:
-
Stations: Hakko FX-888D, FX-888DX, FX-889, FX-888, FR-701, FR-702, 936, 937, 928
-
Irons / Handpieces: Hakko FX-8801, FX-8803, FX-8805, FX-600, FX-600D, 907, 900M
Product Description

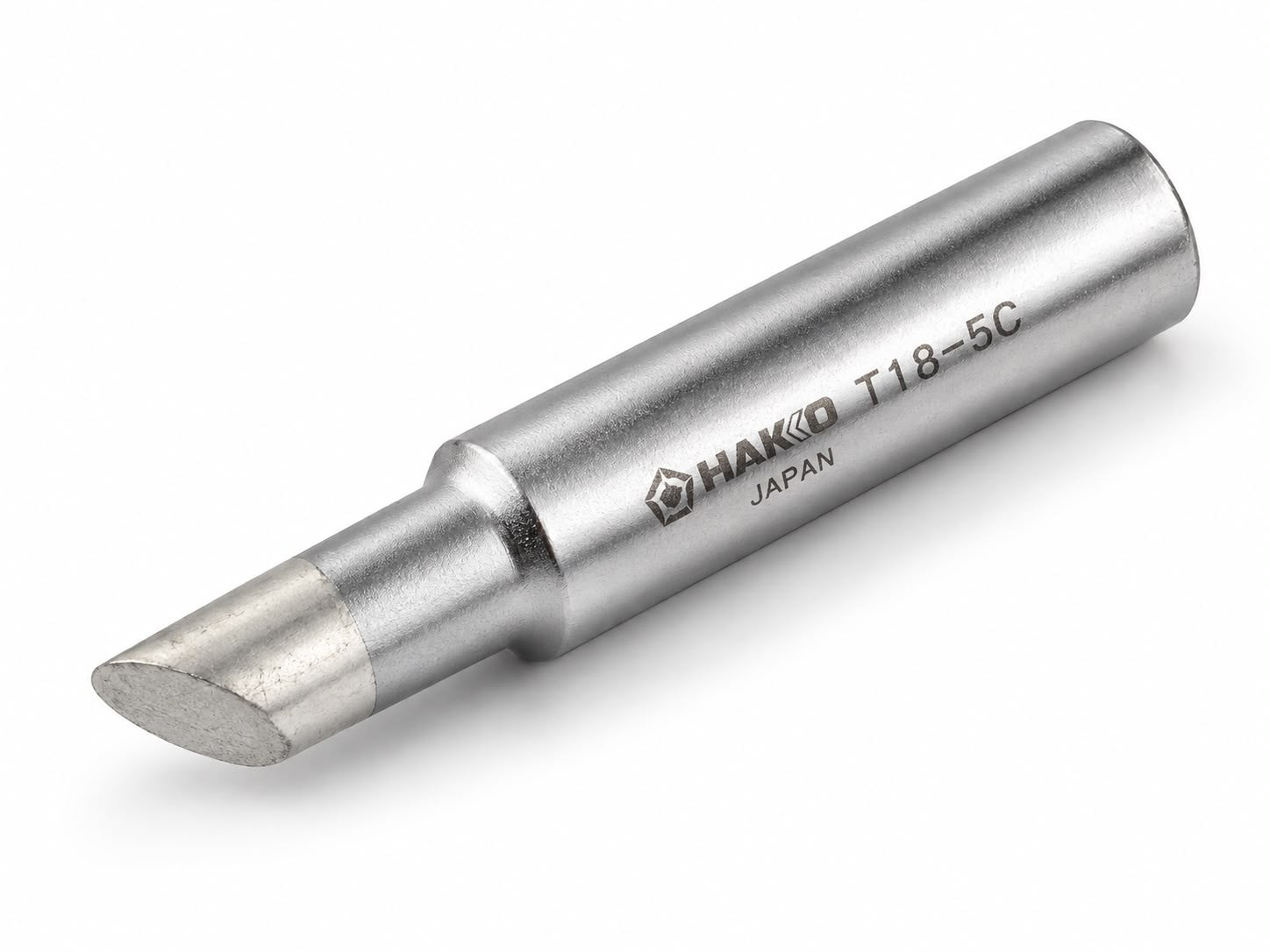

The Hakko T18-C5 (also designated as Shape 5C) is a replacement soldering iron bit featuring a small, slanted bevel (C-shape) profile. It is built specifically for high-precision, fine-pitch electronics work and drag soldering on tight circuit board layouts.
-
ESD Safe Protection: Designed with anti-static properties to protect static-sensitive microcircuits and components during rework.
-
Sealed Storage: Packaged with silica gel in a resealable zipper pouch to prevent copper oxidation and moisture loss.
Product Information
|
Technical Details |
|
|
Brand |
HAKKO |
|
Material |
Copper core with iron Plating Chrome coating Pre-Tinned tip face |
|
Model number |
T18-C5 (Shape-5C)
|
|
Color |
Silver |
|
Tip Profile |
Bevel Cut Slant Column (C-Type) |
|
Item Size |
[Dia : 5mm x Length : 14.5MM] |
|
Package Dimensions |
{20} L x {2} W x {3.5} H MM |
|
Design |
C Type |
|
Feature |
Enhanced Solder Contain
Refined Shape Easy-to-Apply Solder |
|
Bevel Face Diameter |
5 mm (Φ) |
|
Bevel Angle |
45° |
|
Special Features |
ESD Safe Non-Corrosive Non-Conductive Stable Performance Low Volatility No Irritant Smell
|
|
Application |
Best for Repair Soldering SMD/IC Soldering/Desoldering Interface/ PCB Soldering Excellent for surface-mount components, Narrow-pitch soldering, drag soldering, and pre-tinning lead wires. |
|
Included Components |
1N Tip |
|
